100L/min
225/330 Bar
2.2kw
3hp
2300rpm
49kg
650*380*410mm
Single-phase 220V, 50HZ
| Quantity: | |
|---|---|

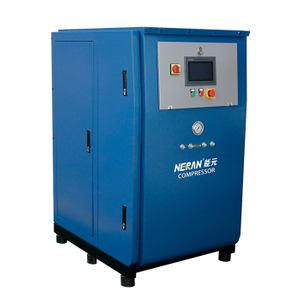

NRW-100GS is a portable breathing air compressor. It has compact structure, light weight and high reliability.This series is widely used in firefighting,diving,paintball shooting,rescue,etc. The models are available with three-phase motor, single-phase motor or petrol engine, which can meet different application needs.
Features
▸Automatic stop is optional
▸Cooling method: air cooling
▸Air quality complies with EN12021
▸CE, CCS, ISO9001, EN12021 certificates
▸Main engine adopts 3 stage compression
▸Providing 225 Bar/330 Bar filling pressure for options
▸Equipped with high-strength fan and belt protective cover
▸The motor has overload, overheating and low voltage protection
Technical Specifications
| Model | NRW-100GS | NRW-100G | NRW-100GG |
| Charging rate (L/min) | 100 | 100 | 100 |
| Max. pressure | 225/330 | 225/330 | 225/330 |
| Number of stages | 3 | 3 | 3 |
| Drive mode | Single-phase 220V, 50HZ | Three-phase 380V, 50HZ | Honda 4-stroke petrol engine |
| Speed(rpm) | 2300 | 2300 | 2300 |
| Power(kw) | 2.2 | 2.2 | 3 |
| Horse(hp) | 3 | 3 | 4 |
| Weight(kg) | 49 | 48 | 43 |
| L*W*H(mm) | 650*380*410 | 650*380*410 | 755*350*410 |
| Air supply interface | G5/8'' | G5/8'' | G5/8'' |
| Note: Motors with different voltages of 50HZ or 60HZ can be customized | |||
 | Select the model you are interested in |
NRW-100GS
NRW-100G
NRW-100GG
